Dynamic Dental Microscopes-DOM-100

Dynamic Dental Microscopes-DOM-100

  • Overview
  • Inquiry
  • Related Products

● Multiple dimensions to create a subtle vision

●Easy operation creates a comfortable surgical experience

●Personalized ergonomic design to reduce work fatigue

●HD image system easy to record

●A variety of options,Suitable for: university scientific research, clinical surgery


1

Technical Parameters(common):

Number Standard configuration specification quantity
1 Binocular tube Adjustable binocular tube with 0-210° 1
2 Binocular tube foci F=170mm 1
3 Rotating disc type PD adjuster 50mm~80mmThe range is 50mm~80mm 1
4 The diameter of field of view 66mm~C10.4mm 1
5 Eyepiece 12.5X/18B 1
6 The adjustable range of visual degree ±6D 1
7 Five-step drum wheel magnification zoom system 3.4x,5.1x,8.3x,13.5x,20.5xMagnification:3.4x,5.1x,8.3x,13.5x,20.5x 1
8 Fine-tuning apochromatic large objective 150mmWorking distance:250-4000mm; the range i 150mm. 1
9 Adjustable double handlebar 1
10 LED illumination,object plane illuminance(F=250) The maximum illuminance ≥30000~600001x, adjustable brightness, with automatic power-off switch. 1
11 Diameter of illuminating light spot(F250) C85mm 1
12 Filter adjuster yellow,green,and heat filter 1
13 Movable floor stand frame Including base, column, big cross arm(510mm), small cross arm (620mm) and so on, the spread length oftotal arm:1350mm, height: 1750mm, the range of up-down≥350mm. 1
14 balancing arm with damping freely rotate to any position with damping 1

Optional upgrade option:

High definiton camera system External SONY camera and video equipment 1920X1080p (including 23.8 display and support)
External SONY camera and video equipment 3840X2160p (including 27 monitor and support)
Built-in camera and video equipment 1920X1080p (including 23.8 monitor and stand)
Built-in camera and video equipment 3840X2160p (including 27 monitor and stand)
PHILIPS display 23.8 inches
AOC dislay 27 inches
Camera pedal (available onlywhen 3840X2160p external device is selected)
objective Prime F250mm(comes with the base model)
Zoom F200--320mm
ZoomF250mm~400mm
Changing times 5 gears: 3.4x, 5.1x,8.3x,13.5x,20.5x(included in base model)
Continuous doubling (5~20 times)
other Pendulum function (about 15 degrees)

Product characteristics:

1.Multiple dimensions  to create a subtle vision

1.Professional optical system clearly capture every detail

◆High quality optical glass, multi-layer optical coating

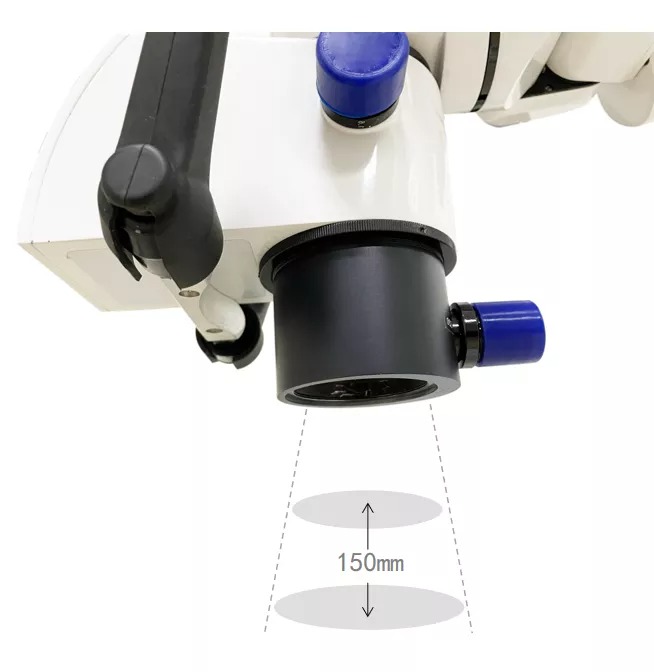

◆Achromatic large objective lens with fine tuning, optical balance technology, optical balancing technique


1

2.Medical LED lighting source to professionally reduce eye fatigue

◆Lighting color temperature 0~5500K, close to natural light, realistic color

◆Stepless brightness adjustment, maximum illumination up to 60000lx

◆Automatic light - off power switch, service life ≥60000 hours

1

2.Multiple filter modes match different surgical environments

White light mode: High color rendering index, and uniform lighting spot, restoring the true color

Green filter: In the surgical blood environment, the tiny neural tube can be displayed more clearly, and the contrast of blood vessels and bleeding points can be improved

Orange filter: It is suitable for the filling of light curing resin material, and can prevent the resin material from curing too fast when irradiated.

1

3. Easy operation creates a comfortable surgical experience

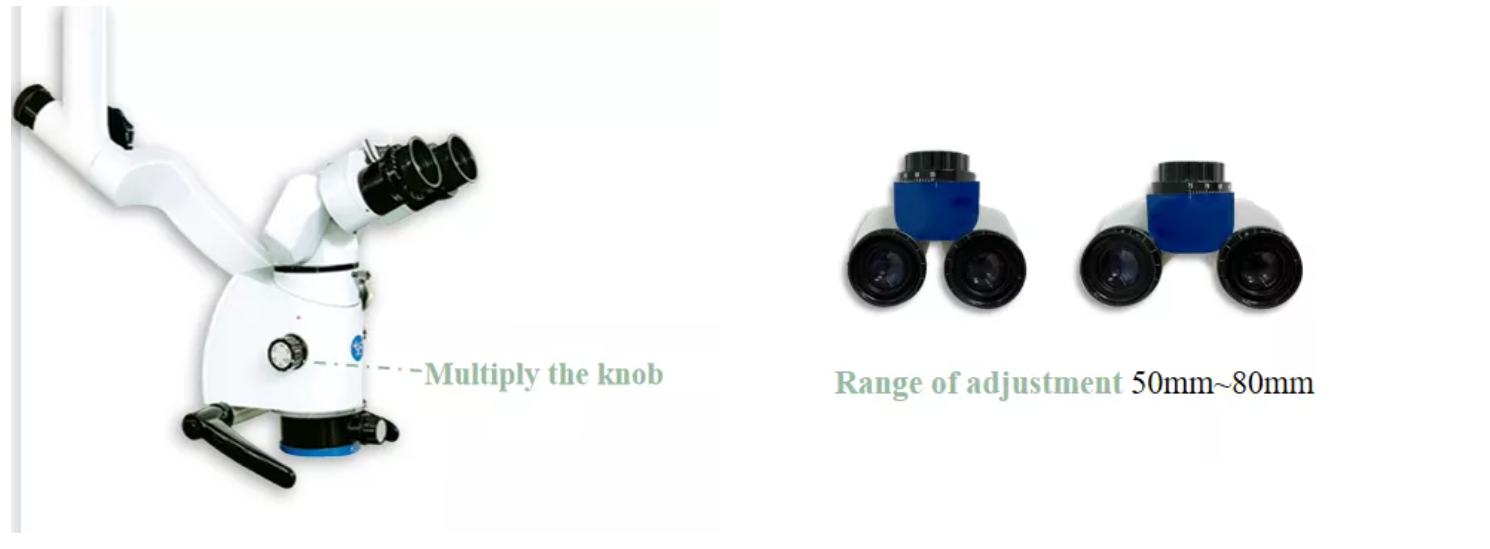

1. drum wheel magnification zoom system, which can be operated with one hand

2. Precise pupillary distance adjustment,which can quickly match the user's pupillary distance

3. ±6D diopter adjustment range, can be easily used without glasses

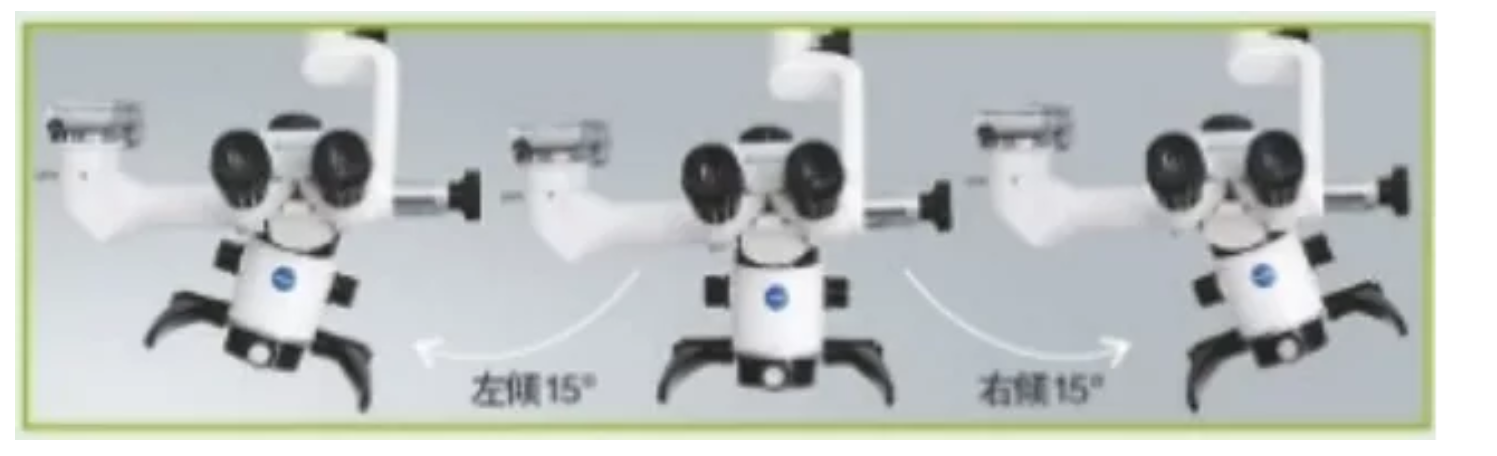

4. Pendulum function to move the lens while keeping the head still

企业微信截图_17140253137864企业微信截图_1714025348685

4.Personalized ergonomic design to reduce work fatigue

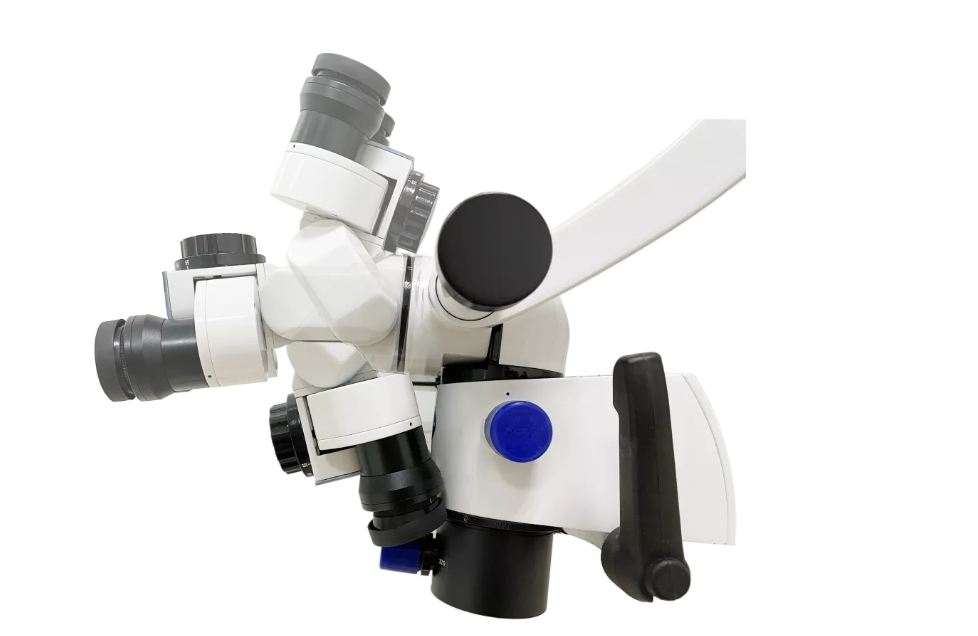

1. An optical hinged binocular barrel with adjustable angle of 0-210°, reducing spine pressure and preventing muscle strain.

2. 120° balancing arm with damping: freely rotate to any position with damping.

企业微信截图_17140253868056

Dynamic Dental Microscopes-DOM-100 supplier

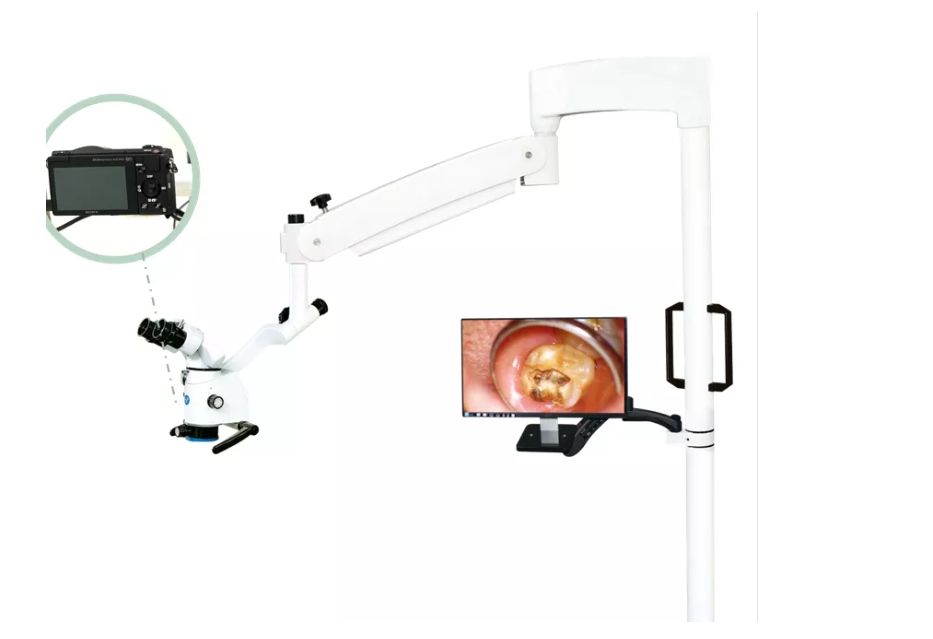

1. External SONY HD camera and video equipment/built-in HD camera and video equipment, full function of one-click operation

2. HD display, clearer vision



Easy to take photos/videos, can be transmitted to computer, tablet and mobile phone terminals through its own SD high-speed memory, also support any size of memory USB flash drive or hard disk

企业微信截图_17140254268409

Suitable for :

university scientific research, clinical surgery

1. Conventional endodontic treatment (such as cracked teeth).

2. Root canal and apical treatment

3. Implant restoration treatment

4. Doctors practice to obtain microdentistry credits



Recommended configurations:



Common model(DOM-100)

Suitable for: college student exercises

Include:Prime focus objective lens(F=250mm) 、Frame of microscope、Lens of microscope



Recommended configuration 1(DOM-100A)

Suitable for: university scientific research, clinical surgery

Doctor-patient communication is more convenient

Include:F200 -- 320mm zoom large objective lens、Frame of microscope、Lens of microscope、Built-in/external camera and video equipment 1920X1080p (choose one of two)、PHILIPS display 23.8 inches



Recommended configuration 2(DOM-100B)

Suitable for: university scientific research, clinical surgery

Doctor-patient communication is more convenient, more comfortable operation

Include:F250 -- 400mm zoom large objective lens、Frame of microscope、Lens of microscope、Pendulum system、Built-in/external camera/video equipment 1920X1080p (choose one of two)、PHILIPS display 23.8 inches



Recommended configuration 3(DOM-100C)

Suitable for: university scientific research, clinical surgery

Doctor-patient communication is more convenient, more comfortable operation, more casual vision



Include:F250 -- 400mm zoom large objective lens、Frame of microscope、Lens of microscope、Continuous multiplication、Pendulum system、Built-in/external camera and video equipment 3840X2160p (choose one of two)、AOC display 27 inches
